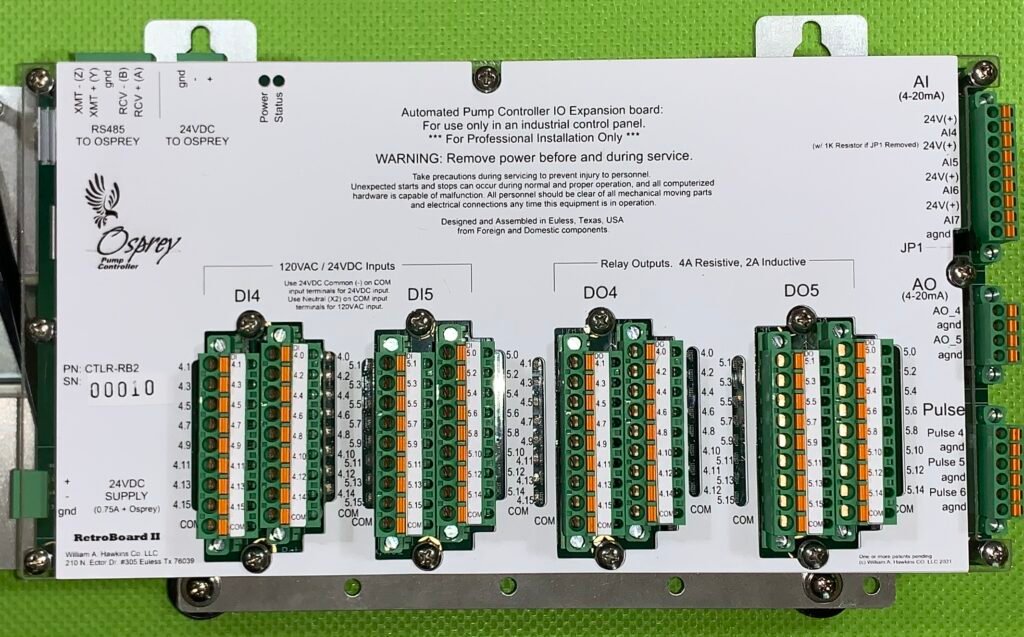

- (32) Inputs can be used as 24VDC and/or 120VAC (DI4/DI5 Commons are separate)
- (32) Relay outputs. 24VDC and/or 120VAC (DO4/DO5 commons are separate)
- (4) 4-20mA analog inputs
- (2) 4-20 mA analog outputs
- (3) Pulse (Flowmeter) inputs
- All terminals pluggable for serviceability
- Requires Osprey controller to operate (Supplied as a kit with Osprey and all cables). Serial connection between Osprey and RetroBoard. IO Can be used in conjunction with IO on Osprey (Terminals not usually supplied with Osprey in kits so Be sure and order separately if required).
- Installation Guide supplied, with examples.
